12V DC Fuse Panel Wiring Kit

Description

This wiring kit contains everything you need to connect your Victron Lynx Distributor to the 12V DC Fuse Panel to send power to all of your hard-wired 12V Devices like lights, fans, USB outlets, refrigerator, diesel heater, and more. Optional Second Fuse Panel Add-On Kits include everything you need to connect a secondary 12V DC Fuse Panel to your primary 12V DC Fuse Panel. 12V DC Fuse Panel sold separately. See videos below for installation instructions.

Pre-Crimped (PRO) vs. Un-Crimped (DIY)

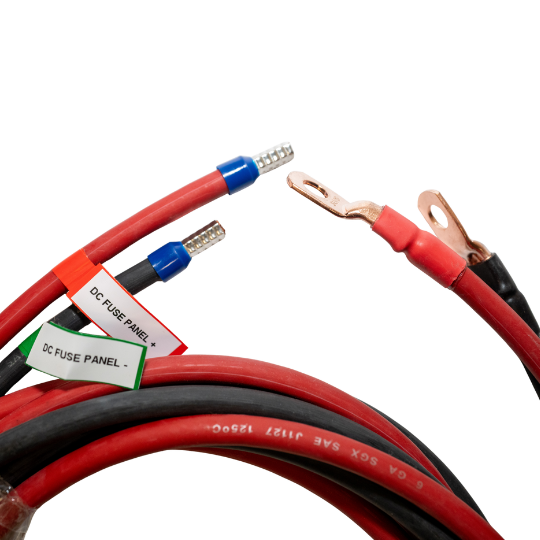

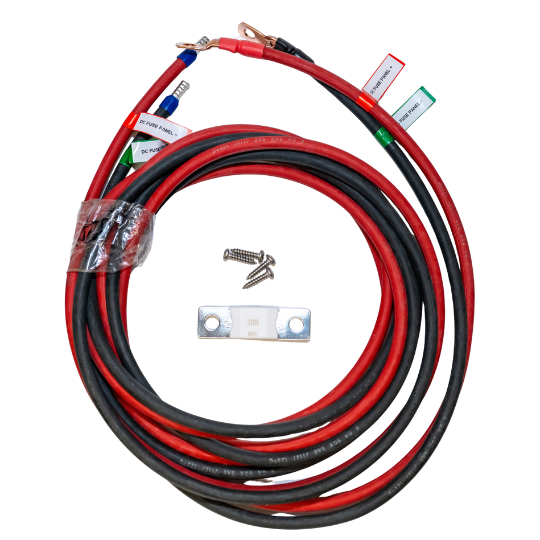

Pre-Crimped (PRO): All cable ends are professionally crimped, labeled, and heat-shrunk by our team for a clean, ready-to-install setup. No crimping tools or extra prep needed—just connect and go.

Un-Crimped (DIY): Includes the same high-quality components, but cables arrive with loose terminals for those who prefer to cut, route, and crimp their own connections during installation. Perfect for full customization or unique layouts.

✅ Choose the Pre-Crimped (PRO) version of this wiring kit to receive cables with terminals professionally crimped and finished by our team. You’ll get the same high-quality components, with the added convenience of ready-to-install cables—perfect for those who want a clean, professional-grade installation without needing to do the crimping themselves.

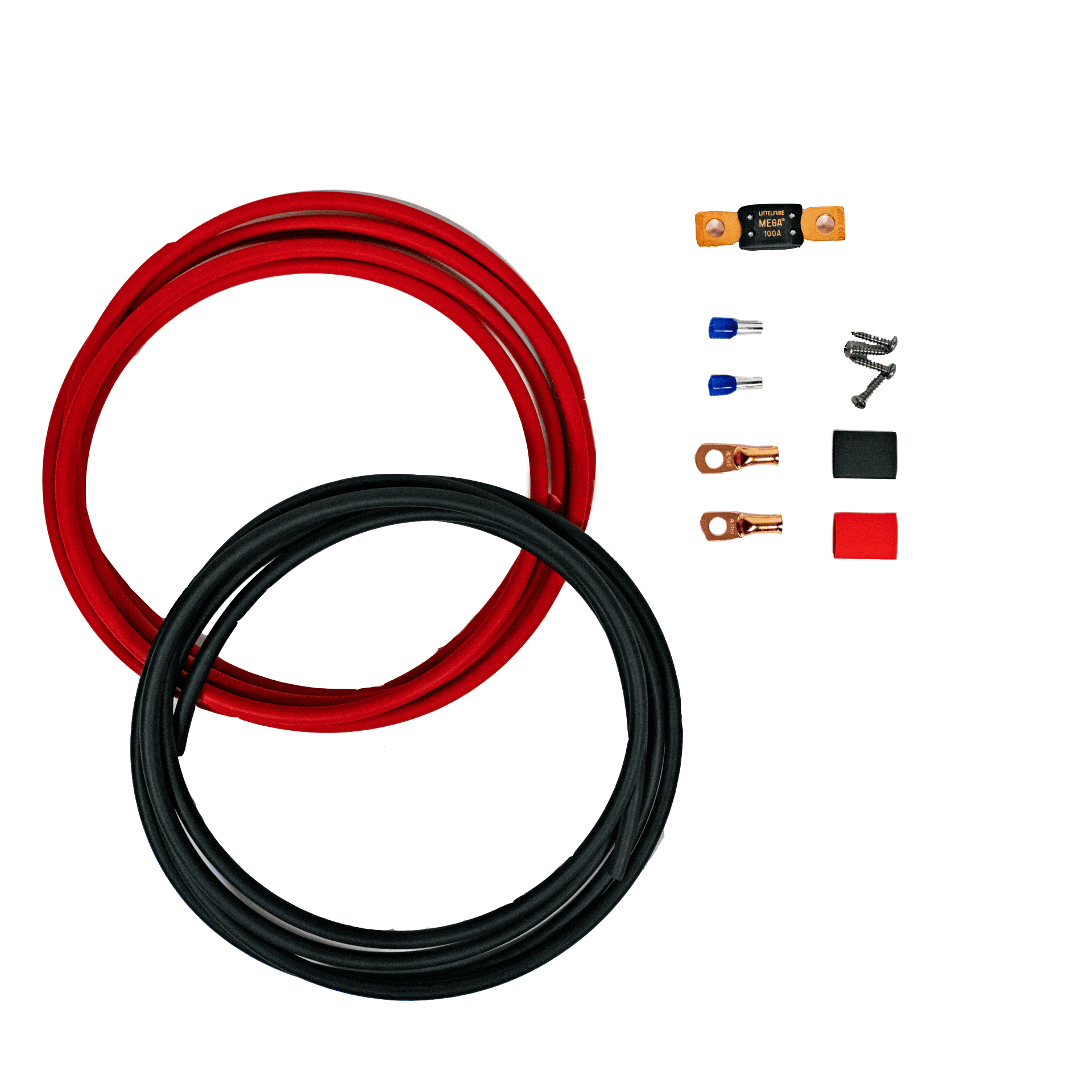

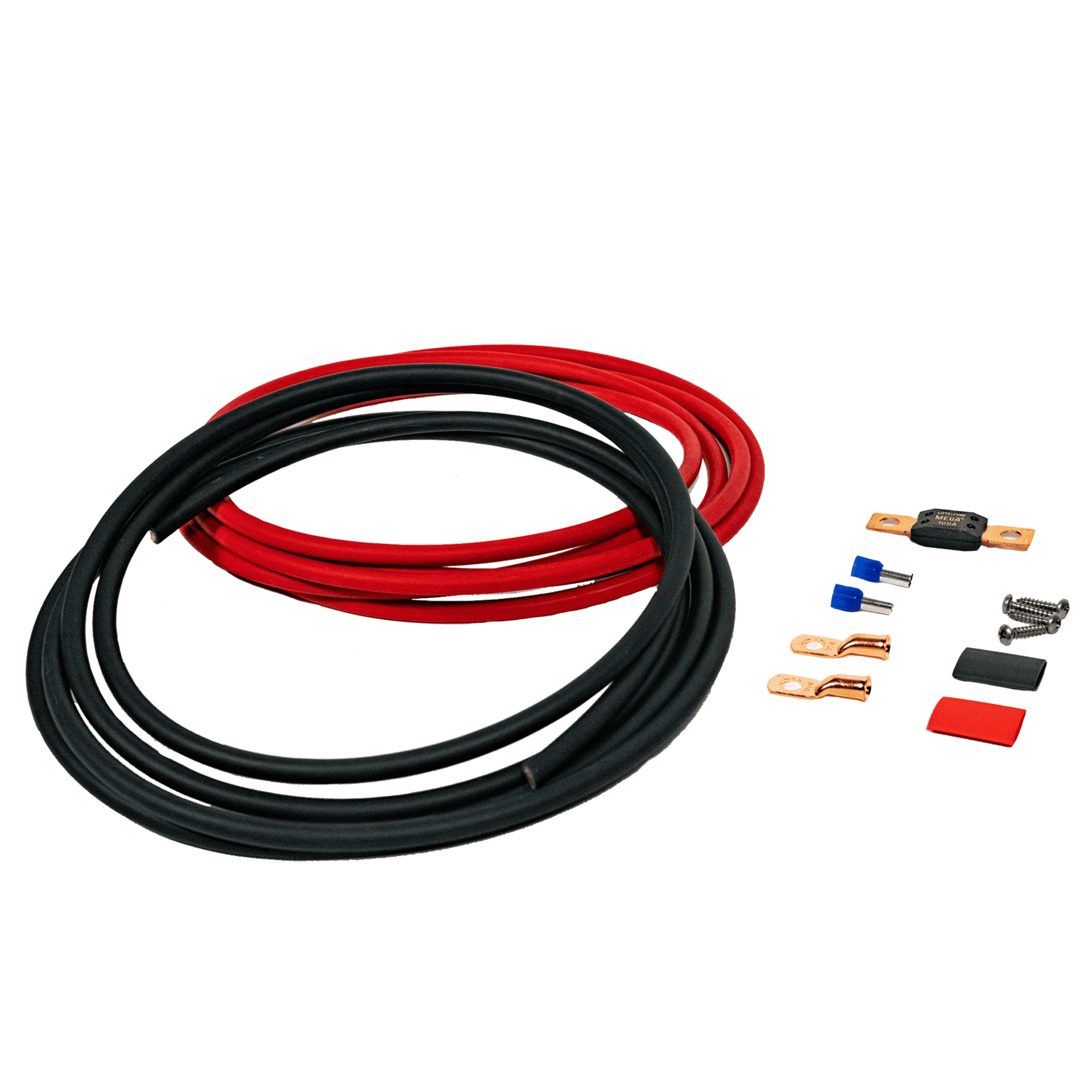

Kit Contents:

How to Install 12V DC Fuse Panel:

Product Information:

• 6 AWG Wire (Red and Black)
  • Size: 6 gauge (AWG)
  • Type: Bare Copper Stranded SGX Wire
  • Insulation Type: XLPE
  • Temperature Rating: -40°C to +90°C
  • Max Voltage: 60V DC
• 6 AWG x 5/16″ Wire Lugs
  • Size: 6 gauge (AWG)
  • Type: Standard Bare Copper
  • Size: 5/16″
• 6 AWG Insulated Ferrules
  • Size: 6 gauge (AWG)
  • Type: Tin Plated Copper
  • Max Voltage: 600V
  • Temperature Rating: 105°C
• 100Amp MEGA Fuse
  • Current Rating: 100A
  • Voltage Rating: 32V
  • Type: Bolt Down Fuse
  • Terminal: Copper
