400W Ground Deploy Solar Charging Wiring Kit (2x200W Briefcases | 24V Battery Bank)

Name: 400W Ground Deploy Solar Charging Wiring Kit (2x200W Briefcases | 24V Battery Bank)
Brand: EXPLORIST.life
SKU: bundle-solarcharging-groundbriefcase-400-24
Availability: InStock

From: $0.00

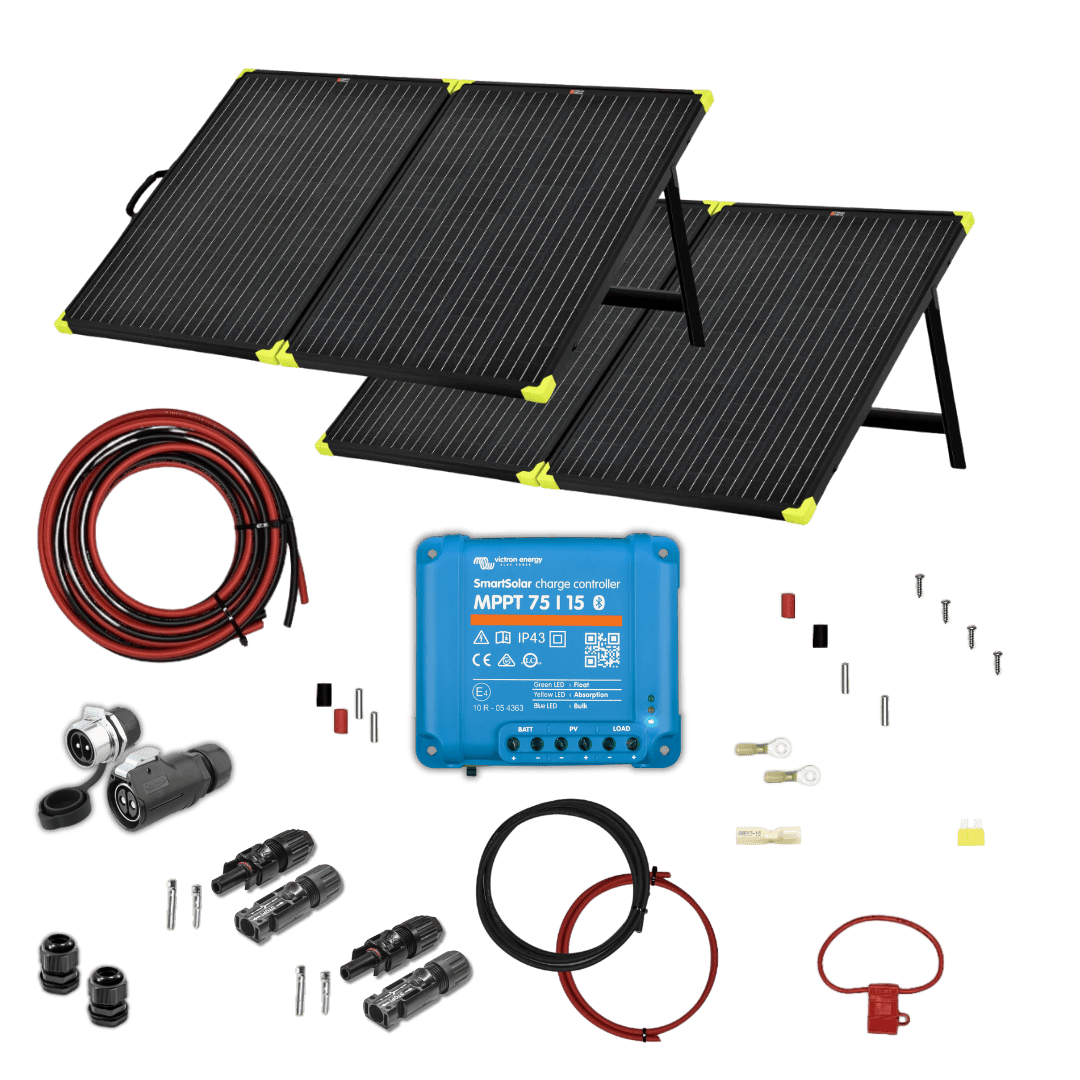

This 400W Ground Deploy Solar Charging Wiring Kit includes everything you need to add two 200W briefcase ground deploy solar panels to to your Victron Lynx Distributor that is charging your 24V battery bank.

Victron SmartSolar MPPT 75|15

The Victron SmartSolar MPPT 75|15 can regulate a solar array with an open circuit voltage of up to 75V down to charge a 12V or 24V battery bank at a max rate of 15A, giving great flexibility when designing a solar array.

In stock

Victron SmartSolar MPPT 75|15 Wiring Kit

$46.99

Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)

Upgrade your wiring kit to our Pre-Crimped (PRO) option for a plug-and-play experience. Each cable is professionally crimped, labeled, and heat-shrunk by our in-house team for a perfect fit and reliable connections. No special tools or crimping required—just install and go.

Choose Your Array Type:

Wire Crimping

PV Wire Length

Clear

Solar Isolator Breaker (Single Array) 32A/500VDC

Add this if you are using only a ground deploy and not a roof array.

$29.99

In stock

PV Connector

$2.49 each

In stock

10 AWG Solar Wire

Add if needed in addition to what is included in the solar array wiring kit.

Feet

Clear

Rich Solar 200 Watt Portable 12 Volt Solar Panel Briefcase

This Rich Solar Mega 200 Watt Portable 12 Volt Solar Panel Briefcase is the perfect solution for a ground deploy solar array.

$399.99 each

SKU: bundle-solarcharging-groundbriefcase-400-24 Categories: ALL PRODUCTS, GROUND DEPLOY SOLAR, SOLAR ARRAY BUNDLES, WIRING KITS

Description

Wiring Diagram:

Here is the wiring diagram for the this solar charging kit:

Battery Bank Voltage	24V
Solar Panel Wattage	200W
Solar Panel Style	Briefcase Panel

Weight	1.3 lbs
Dimensions	6 × 6 × 4 in
Max Input Voltage	75V
Max Amperage Output	15A
Battery Bank Voltage	12V, 24V
Max Wire Size	10 AWG

Weight	1 lbs
Dimensions	8 × 8 × 2 in
Max Input Voltage	75V
Max Amperage Output	15A
Battery Bank Voltage	12V, 24V
Max Wire Size	10 AWG
Wiring Kit Application	Solar Charging

Weight	2.5 lbs
Dimensions	10 × 10 × 4 in
Choose Your Array Type:	Single Roof Array, Dual Roof Array, Roof and Ground Deploy Arrays, Single Roof Array for OEM Solar Ready, Add-On Ground Deploy Array, Add-On 2nd Roof Array
Wiring Kit Application	Solar Array
Wire Crimping	Pre-Crimped (PRO), Un-crimped (DIY)
PV Wire Length	20ft, 25ft, 50ft

Weight	1 lbs
Dimensions	7 × 4 × 2 in
