580W Solar Charging Wiring Kit (12V Battery Bank)

580W Solar Charging Wiring Kit (12V Battery Bank) - Image 2

580W Solar Charging Wiring Kit (12V Battery Bank) - Image 3

580W Solar Charging Wiring Kit (12V Battery Bank) - Image 4

580W Solar Charging Wiring Kit (12V Battery Bank)

Name: 580W Solar Charging Wiring Kit (12V Battery Bank)
Brand: EXPLORIST.life
SKU: bundle-solarcharging-580-12
Availability: InStock

From: $0.00

Victron SmartSolar MPPT 100|50

The Victron SmartSolar MPPT 100|50 can regulate a solar array with an open circuit voltage of up to 100V down to charge a 12V or 24V battery bank at a max rate of 50A, giving great flexibility when designing a solar array.

In stock

EXPLORIST-life-Victron-SmartSolar-MPPT-100-50-Solar-Wiring-Kit

Victron SmartSolar MPPT 100|50 Wiring Kit

The Victron SmartSolar MPPT 100|50 Wiring Kit includes everything you need to connect a Victron SmartSolar MPPT 100|50 solar charge controller to a Victron Lynx Distributor.

Upgrade your wiring kit to our Pre-Crimped (PRO) option for a plug-and-play experience. Each cable is professionally crimped, labeled, and heat-shrunk by our in-house team for a perfect fit and reliable connections. No special tools or crimping required—just install and go.

Wire Crimping

Clear

Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)

Upgrade your wiring kit to our Pre-Crimped (PRO) option for a plug-and-play experience. Each cable is professionally crimped, labeled, and heat-shrunk by our in-house team for a perfect fit and reliable connections. No special tools or crimping required—just install and go.

Choose Your Array Type:

Wire Crimping

PV Wire Length

Clear

PV Connector

$2.49 each

In stock

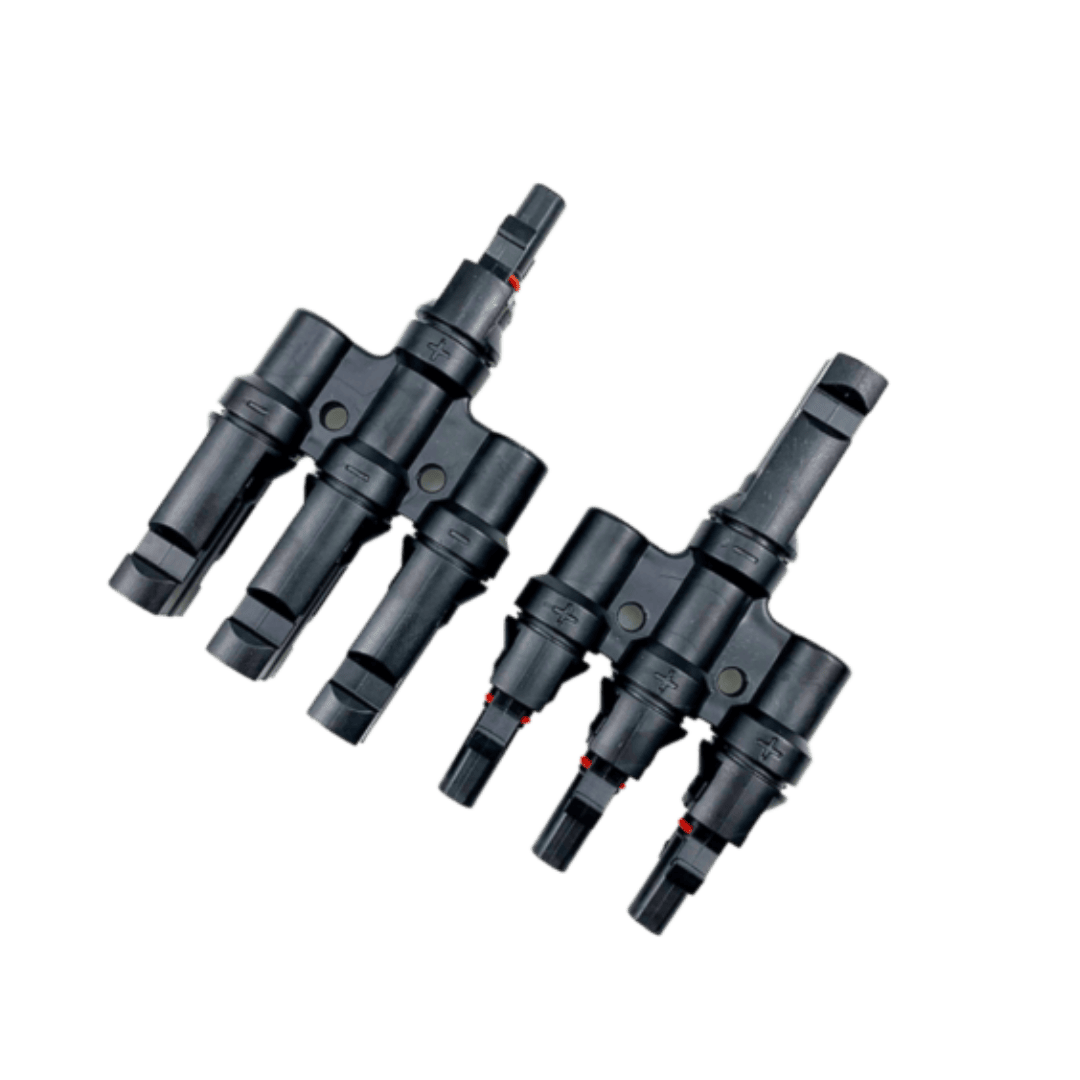

3-to-1 PV Branch Connector

$15.99

In stock

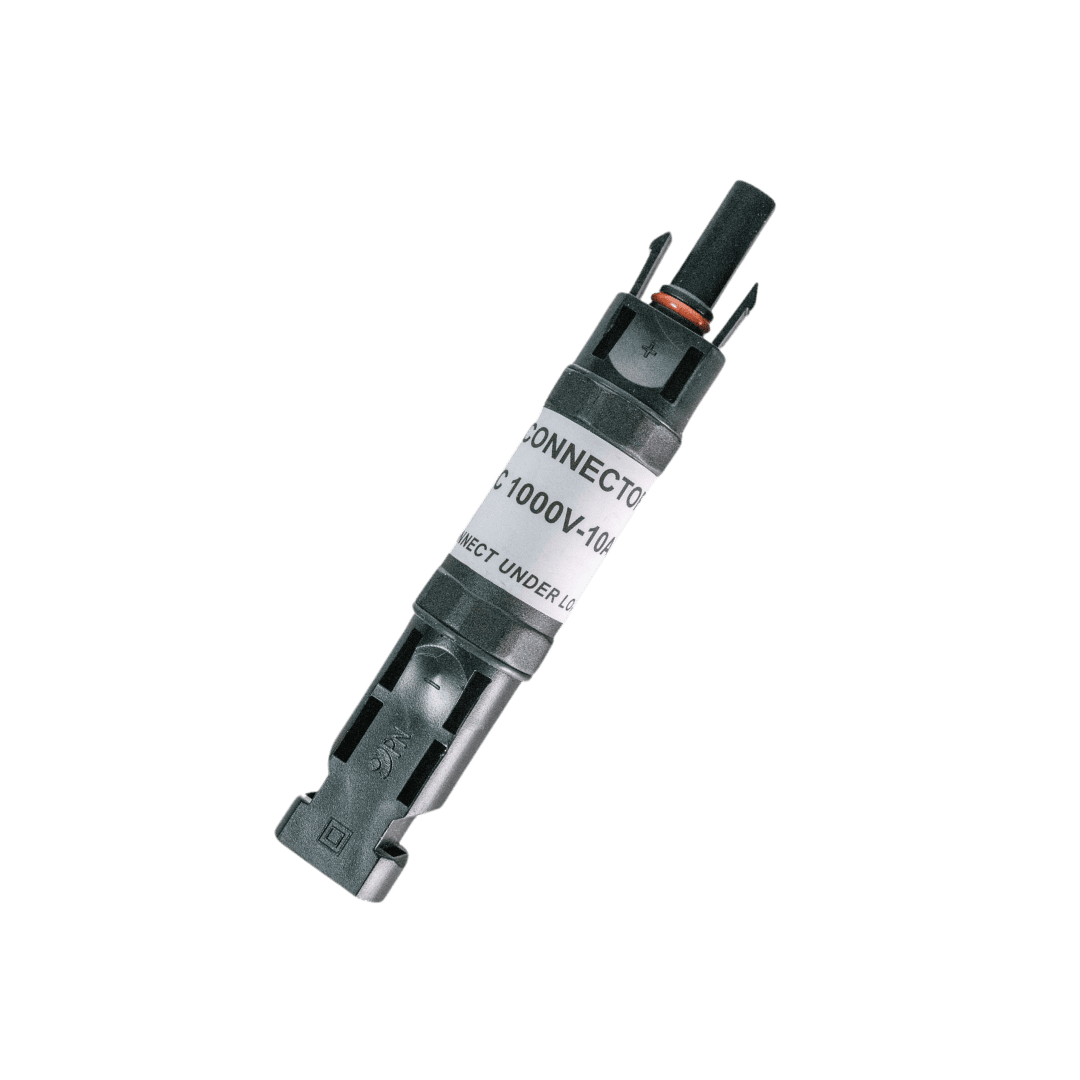

10A PV Fuse

$13.99 each

In stock

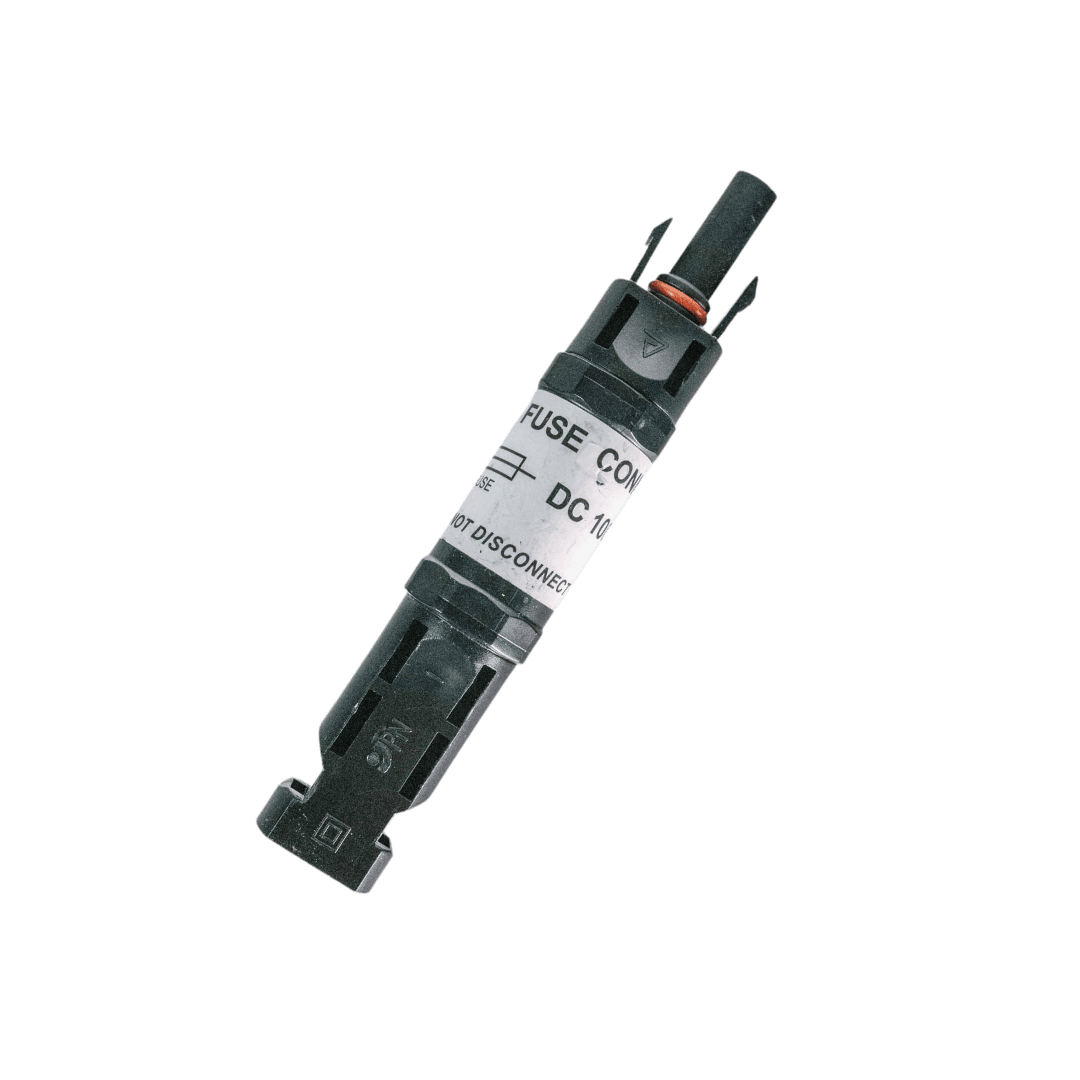

20A PV Fuse

$13.99

In stock

10 AWG Solar Wire

Red and Black Solar Wire - Sold in 10ft increments (both red & black wire included)

Feet

Clear

Rich Solar Mega 200 Watt 12 Volt Solar Panel

$239.99 each

Rich Solar Mega 55 Watt 12 Volt Solar Panel

$69.99 each

In stock

Rich Solar Mega 35 Watt 12 Volt Solar Panel

$54.99 each

SKU: bundle-solarcharging-580-12 Categories: ALL PRODUCTS, SOLAR ARRAY BUNDLES, WIRING KITS

Description

The same solar array as seen on the EXPLORIST.life 2021 Ford Transit Camper Build except this one is set up to connect to a 12V battery bank.

This solar charging wiring kit includes everything you need to be able to connect 2 x 200W, 2 x 55W, and 2 x 35W solar panels in series-parallel to your Victron Lynx Distributor that is charging your 12V battery bank.

This kit is specifically designed to fit specifically to the Unaka Gear Co EXPLORIST.life Transit Roof Rack. This roof rack was specifically designed for these custom Rich Solar panels and contains low profile cross bars to custom fit these solar panels.

Installation Tutorial:

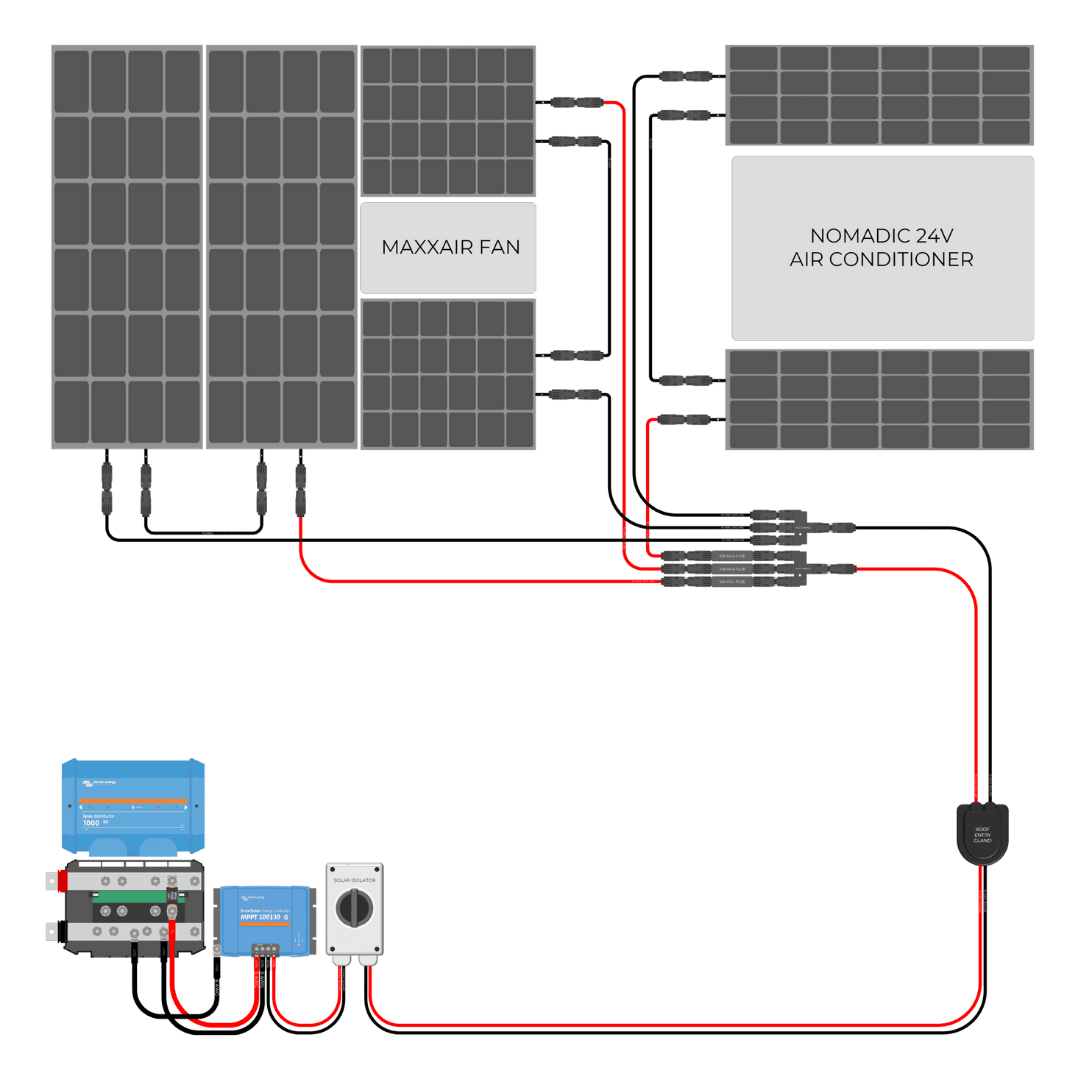

Wiring Diagram:

Here is the wiring diagram for the this solar charging kit:

Battery Bank Voltage	12V
Solar Panel Wattage	200W, 35W, 55W
Solar Panel Style	Rigid Panel

Weight	3.5 lbs
Dimensions	8 × 5 × 3.75 in
Max Input Voltage	100V
Max Amperage Output	50A
Battery Bank Voltage	12V, 24V
Max Wire Size	6 AWG

Weight	2 lbs
Dimensions	10 × 10 × 2 in
Wire Crimping	Pre-Crimped (PRO), Un-crimped (DIY)
Max Input Voltage	100V
Max Amperage Output	50A
Max Wire Size	6 AWG
Wiring Kit Application	Solar Charging

Weight	2.5 lbs
Dimensions	10 × 10 × 4 in
Choose Your Array Type:	Single Roof Array, Dual Roof Array, Roof and Ground Deploy Arrays, Single Roof Array for OEM Solar Ready, Add-On Ground Deploy Array, Add-On 2nd Roof Array
Wiring Kit Application	Solar Array
Wire Crimping	Pre-Crimped (PRO), Un-crimped (DIY)
PV Wire Length	20ft, 25ft, 50ft

Weight	0.2 lbs
Dimensions	4 × 1 × 1 in

Weight	0.2 lbs
Dimensions	10 × 10 × 0.1 in
Feet	10 ft., 20 ft., 25 ft., 30 ft., 40 ft., 50 ft., 60 ft., 75 ft., 80 ft., 100 ft.
