Chassis Ground Wire Kit

Description

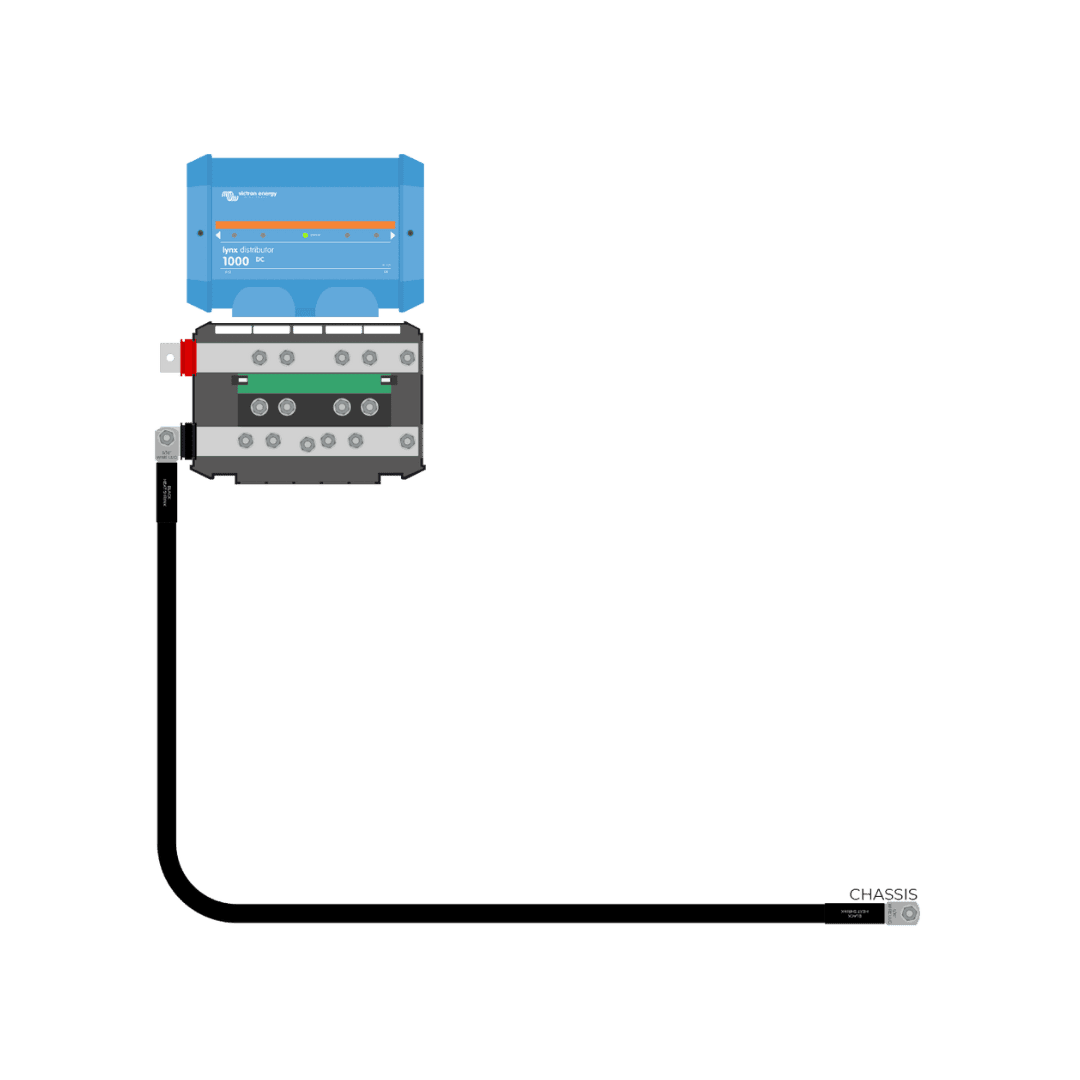

This Chassis Ground Wire Kit includes everything you need to make a chassis ground connection from the Victron Lynx Distributor to a chassis ground point. See videos below for installation instructions.

Pre-Crimped (PRO) vs. Un-Crimped (DIY)

Pre-Crimped (PRO): All cable ends are professionally crimped, labeled, and heat-shrunk by our team for a clean, ready-to-install setup. No crimping tools or extra prep needed—just connect and go.

Un-Crimped (DIY): Includes the same high-quality components, but cables arrive with loose terminals for those who prefer to cut, route, and crimp their own connections during installation. Perfect for full customization or unique layouts.

✅ Choose the Pre-Crimped (PRO) version of this wiring kit to receive cables with terminals professionally crimped and finished by our team. You’ll get the same high-quality components, with the added convenience of ready-to-install cables—perfect for those who want a clean, professional-grade installation without needing to do the crimping themselves.

---

The Chassis Ground Wire Kit Includes:

COMPONENT	QTY
Black Wire (Various wire sizes available)	5 ft
XX x 5/16″ Wire Lug (Size varies based on wire size)	2
Black Heat Shrink (Size varies based on wire size)	2 pcs
5/16″-18 x 1″ Hex Bolt	1
5/16″-18 Hex Nut	1
5/16″ Flat Washer	2
5/16″ Lock Washer	1
5/16″ Serrated Washer	1

---

How to Wire a Chassis Ground

---

Product Information

Click for Details

• 4/0 Wire:
  • Size: 0000 gauge (4/0 AWG)
  • Type: Fully annealed soft-drawn copper SGR
  • Insulation: Highly flexible EPDM
  • Temperature Rating: -50?C to +105?C
  • Max Voltage: 60V
• 4/0 x 5/16? Wire Lug
  • Size: 4/0 AWG
  • Type: Standard Bare Copper
  • Size: 5/16?
• 2/0 Wire:
  • Size: 00 gauge (2/0 AWG)
  • Type: Fully annealed soft-drawn copper SGR
  • Insulation: Highly flexible EPDM
  • Temperature Rating: -50?C to +105?C
  • Max Voltage: 60V
• 2/0 x 5/16? Wire Lug
  • Size: 2/0 AWG
  • Type: Standard Bare Copper
  • Size: 5/16?
• 1/0 Wire:
  • Size: 0 gauge (1/0 AWG)
  • Type: Fully annealed soft-drawn copper SGR
  • Insulation: Highly flexible EPDM
  • Temperature Rating: -50?C to +105?C
  • Max Voltage: 60V
• 1/0 x 5/16? Wire Lug
  • Size: 1/0 AWG
  • Type: Standard Bare Copper
  • Size: 5/16?
• Hardware
  • Stainless Steel
