Dual Victron Orion XS Wiring Kit

Dual Victron Orion XS DC to DC Charger Wiring Kit

$483.99

This kit includes everything you need to be able to connect TWO Victron Orion XS DC-DC Chargers to your engine starting battery. Orion XS sold separately.

Clear

Add the Orions (2 Needed) and the Anderson Connectors:


Victron Orion XS 12|12-50 DC-DC Charger - Non-Isolated

Anderson SB®120 Connector with 4 AWG Contacts

Anderson SB®120 Connector with 2 AWG Contacts

Package includes two (2) grey Anderson SB® 120 Connectors with four (4) SB 2 AWG Contacts, for a complete kit to connect positive and negative 2 AWG wires for quick disconnect capabilities.

Victron Orion XS 1400 DC-DC Battery Charger

Victron Orion XS 1400 DC-DC Charger

The Victron Orion XS 1400 is a high-performance, Bluetooth-enabled DC-DC battery charger offering up to 50A of adaptive charging or power supply functionality for 12V systems. Ideal for lithium and smart alternator setups.

SKU: wk-orion-121250-dual Categories: , ,

Description

This kit includes everything you need to be able to connect TWO Victron Orion XS DC-DC Chargers to your engine starting battery. Victron Orion XS DC-DC Chargers are sold separately.

*Anderson connectors for travel trailers/5th wheel campers sold separately.

DUAL VICTRON ORION XS DC-DC CHARGER WIRING KIT CONTENTS:

Click to see contents of kit:
COMPONENTQTY
2 AWG Red Wire40ft
2 AWG Black Wire40ft
6 AWG Red Wire4ft
6 AWG Black Wire2ft
2 AWG x 5/16″ Wire Lug8
2 AWG x 1/4″ Wire Lug2
6 AWG x 5/16″ Wire Lug6
6 AWG Ferrule6
150 Amp MEGA Fuse1
60 Amp MRBF Fuse4
150 Amp Surface Mount Circuit Breaker1
Junction Block3
Dual MRBF 30-300A Terminal Fuse Block2
3/4″ Red Heat Shrink6 pcs
3/4″ Black Heat Shrink4 pcs
1/2″ Red Heat Shrink8 pcs
1/2″ Black Heat Shrink4 pcs
Mounting Hardware for Orion XS 2 pks

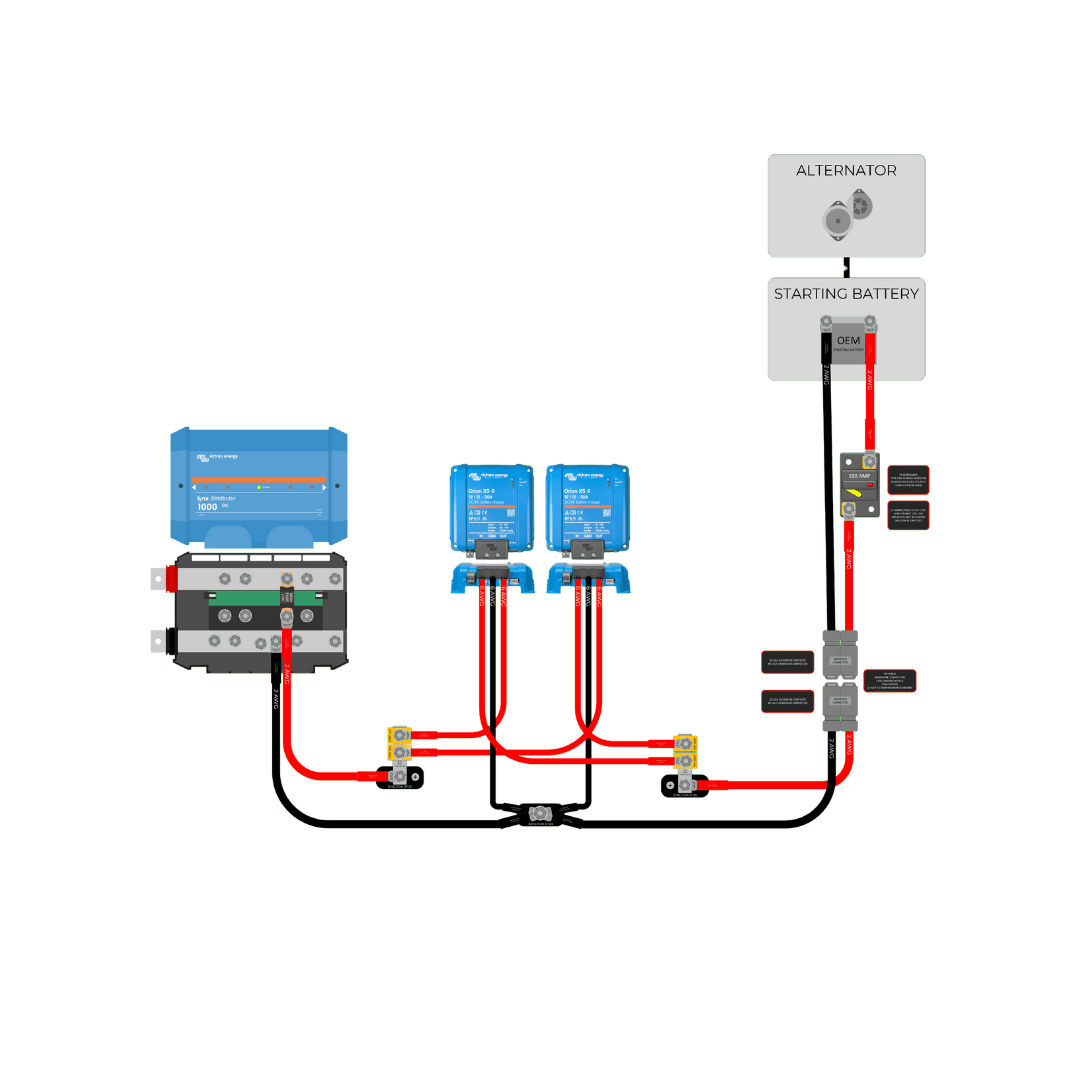

How to Wire Dual Victron Orion XS:

Click HERE for a high resolution version of this diagram

Dual Victron Orion XS Wiring Kit

Product Information

Product Information (click to expand):
  • 2 AWG Wire (Red and Black)
    • Size: 2 gauge (AWG)
    • Type: Bare Copper Stranded SGX Wire
    • Insulation Type: XLPE
    • Temperature Rating: -40°C to +90°C
    • Max Voltage: 60V DC
  • 2 AWG x 5/16″ Wire Lugs
    • Size: 2 gauge (AWG)
    • Type: Standard Bare Copper
    • Size: 5/16″
  • 2 AWG x 1/4″ Wire Lugs
    • Size: 2 gauge (AWG)
    • Type: Standard Bare Copper
    • Size: 1/4″
  • 6 AWG Wire (Red and Black)
    • Size: 6 gauge (AWG)
    • Type: Bare Copper Stranded SGX Wire
    • Insulation Type: XLPE
    • Temperature Rating: -40°C to +90°C
    • Max Voltage: 60V DC
  • 6 AWG x 5/16″ Wire Lugs
    • Size: 6 gauge (AWG)
    • Type: Standard Bare Copper
    • Size: 5/16″
  • 6 AWG Ferrules
    • Size: 6 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105°C
  • 150 Amp MEGA Fuse
    • Current Rating: 150A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Copper
  • 60 Amp MRBF Fuse
    • Current Rating: 60A
    • Voltage Rating: 58V DC
  • 150 Amp Circuit Breaker
    • Current Rating: 150A
    • Voltage Rating: 48V
    • Sud Size: 3/8″
    • Operating Temperature: -32°C to 82°C
  • Junction Block
    • Termination: 250A Max
    • Size: 5/16″ Stud
    • Material: Stainless Steel
  • Dual MRBF 30-300A Terminal Block
    • Current Rating: 30-300A
    • Voltage Rating: 58VDC
    • Terminal Stud: M8
    • Mounting Hole: 3/8″
