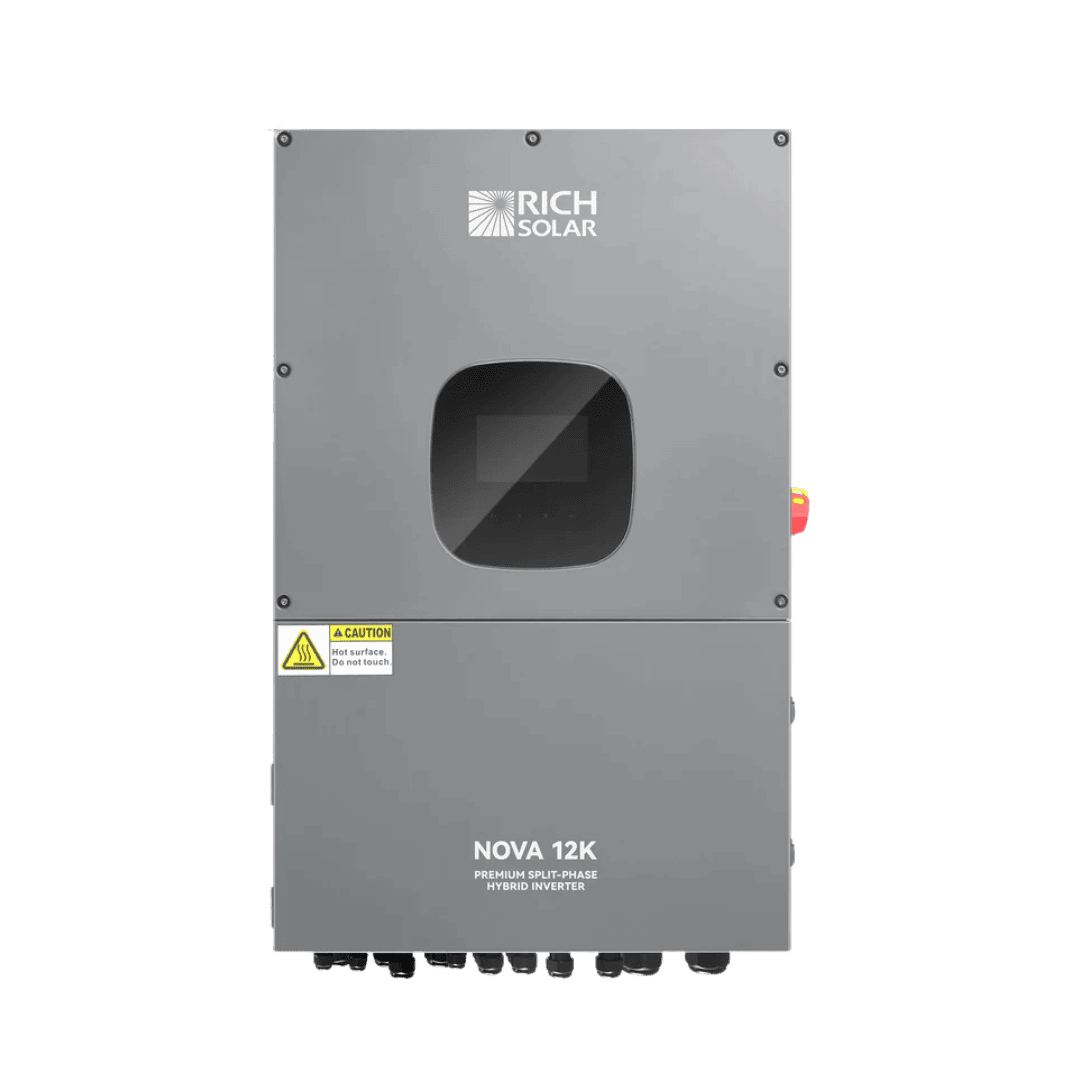

Rich Solar Nova 12k Hybrid Inverter
Original price was: $3,999.99.$2,999.99Current price is: $2,999.99.
The Rich Solar Nova 12K Hybrid Inverter delivers 12,000W of reliable, split-phase power for off-grid, grid-tie, or hybrid applications. With dual MPPTs, 200A battery charging, and Wi-Fi monitoring, it’s a high-performance solution for whole-home solar energy systems.
Description
Product Description
The Rich Solar Nova 12K Hybrid Inverter is a powerful all-in-one solution for residential and light commercial off-grid, grid-tied, or hybrid solar systems. Offering up to 12,000 watts of solar input and 10,000 watts of output power with intelligent load management, the Nova 12K seamlessly integrates solar, battery, and utility sources to deliver reliable, uninterrupted energy.
With split-phase 120/240V output, dual MPPT solar charge controllers, and up to 200A of battery charging and discharging, this inverter provides exceptional versatility for a wide range of energy storage configurations. It supports both lithium and lead-acid batteries and includes Wi-Fi connectivity for real-time monitoring via the iSolar app.
Built for durability and flexibility, the Nova 12K features an IP65-rated enclosure for indoor or outdoor installations, built-in rapid shutdown transmitter, and compatibility with generators and parallel system configurations (up to 6 units for 72,000W of solar input). Whether you’re building an off-grid cabin system or a grid-interactive home backup solution, the Nova 12K offers professional-grade performance with user-friendly controls.
This product ships separately from EXPLORIST.life components. This product ships from Rich Solar’s warehouse.
Key Features
- 10,000W Split-Phase Hybrid Output — Ideal for whole-home systems with 120/240V loads
- Dual MPPT Solar Inputs — Handles up to 12,000W of solar (2x PV strings up to 600VDC each)
- High-Power Battery Support — 200A max charge/discharge current, 48V nominal battery voltage
- Off-Grid, Grid-Tie & Backup Modes — Flexible configurations for any power scenario
- Integrated Wi-Fi — Monitor performance with the iSolar app (iOS/Android)
- IP65 Outdoor-Rated Enclosure — Suitable for wall-mounted indoor or outdoor use
- Parallel Capability — Connect up to 6 units (72kW) for high-power systems
- Built-in Rapid Shutdown Transmitter — Compatible with APsmart RSD devices
- Generator Input — Auto-start capability via dry contact control
- Smart Load & Charging Management — Adjustable priority settings for PV, grid, and battery
Technical Specifications (click to expand)
- Inverter Output Power: 10,000W (split-phase 120/240V)
- Nominal Battery Voltage: 48V DC
- Max Battery Charge/Discharge Current: 200A
- Max PV Input Power: 12,000W
- MPPT Voltage Range: 120–550V DC
- Max PV Input Voltage: 600V DC
- Max PV Input Current: 2 × 18A
- Grid Output Voltage: 120/208/240V AC (auto-sensing)
- Output Waveform: Pure Sine Wave
- Nominal AC Frequency: 50/60Hz
- Efficiency (DC to AC): 91%
- AC Input Max Current: 60A
- Enclosure Rating: IP65 (indoor/outdoor use)
- Operating Temperature: -25°C to 60°C (derating above 45°C)
- Humidity Range: 0–90% RH (non-condensing)
- Altitude: Up to 2000m (1% power derating every 100m above 1000m)
- Dimensions: 8.5″ x 20.3″ x 28.1″
- Weight: 112 lb
- Communication Interfaces: RS-232, USB, CAN, BMS, Wi-Fi
- Battery Compatibility: Lithium-ion, Sealed Lead Acid, AGM, Gel
- Parallel Operation: Up to 6 units
- Rapid Shutdown: Built-in transmitter (compatible with APsmart)
- App Monitoring: iSolar App (iOS/Android)
