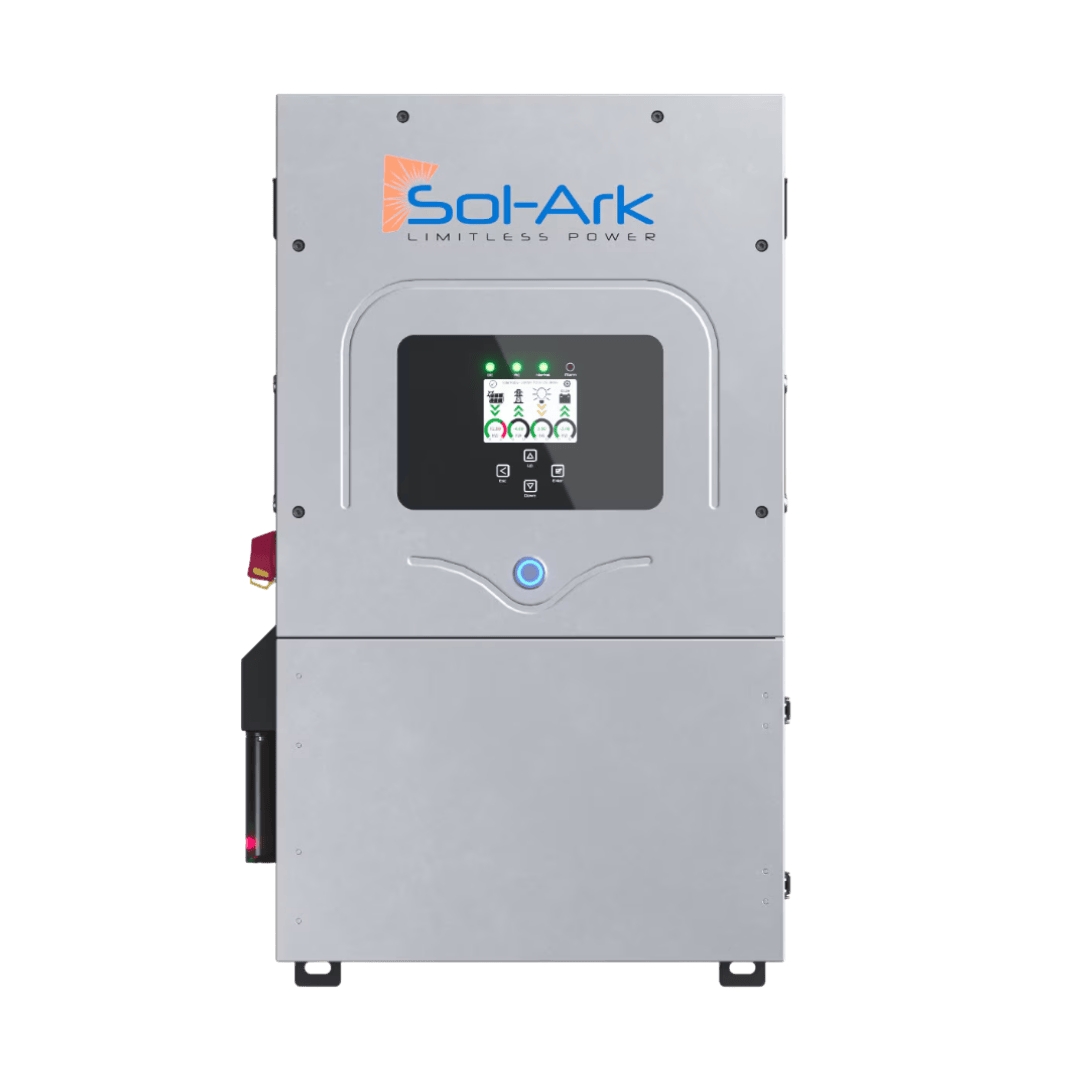

Sol-Ark 5K 1P-N Hybrid Inverter
$1,500.00
The Sol-Ark 5K-1P-N is a 5kW hybrid inverter with dual MPPTs, battery compatibility, and seamless backup power for grid-tied or off-grid solar systems.
Description
Product Description
The Sol-Ark 5K-1P-N is a powerful, all-in-one hybrid inverter designed for residential and light commercial energy systems. Engineered for flexibility and reliability, it seamlessly integrates solar, battery storage, grid power, and generator input into a single, compact solution. This inverter is ideal for both grid-tied and off-grid applications, delivering dependable energy management and backup power when it matters most.
With a 5kW output capacity and advanced battery compatibility, the 5K-1P-N supports a wide range of lithium and lead-acid battery chemistries, giving users the freedom to design systems tailored to their needs. Its intelligent energy management system prioritizes solar usage, reduces grid dependence, and ensures uninterrupted power during outages through rapid transfer switching.
The unit features dual MPPT charge controllers, maximizing solar harvest efficiency across varying conditions and array configurations. Built-in monitoring and remote management capabilities allow users to track performance and system status in real time, enhancing visibility and control.
Designed with durability and ease of installation in mind, the Sol-Ark 5K-1P-N includes integrated protections, a user-friendly interface, and a robust enclosure suitable for indoor or protected outdoor environments. Its all-in-one design reduces system complexity, minimizes installation time, and lowers overall project costs.
Whether you’re building a new solar-plus-storage system or upgrading an existing setup, the Sol-Ark 5K-1P-N delivers a reliable, scalable, and efficient energy solution.
Key Features:
- 5kW continuous output with single-phase support
- Hybrid functionality: grid-tied, off-grid, and backup power capable
- Dual MPPT solar charge controllers for optimized PV performance
- Compatible with lithium-ion and lead-acid batteries
- Seamless automatic transfer switch for backup power
- Integrated monitoring with remote access
- Compact, all-in-one design for simplified installation
Technical Specifications (click to expand)
- Continuous AC Output Power: 4,800 W
- Surge AC Output Power (10s): 36,000 W
- AC Output Voltage: 120V single‑phase
- Max AC Passthrough Current: 50 A
- Max Efficiency: ≤ 97.6%
- Max. Allowed PV Power (STC): 10,400W
- MPPT Voltage Range: 150–425 V
- Max DC Input Voltage: 500 V
- Battery Input Nominal Voltage: 48 V (operating range 40–60 V)
- Max. Battery Charge / Discharge Current: 120 A
- Enclosure Rating: IP65 / NEMA 3R
- Operating Ambient Temperature: –40 °C to +60 °C (derating above ~45 °C)
For additional Technical Specifications, please see:
