Victron SmartSolar MPPT 100|15 Wiring Kit

Description

The Victron SmartSolar MPPT 100|15 Wiring Kit includes everything you need to connect a Victron SmartSolar MPPT 100|15 solar charge controller (sold separately) to a Victron Lynx Distributor (sold separately).

---

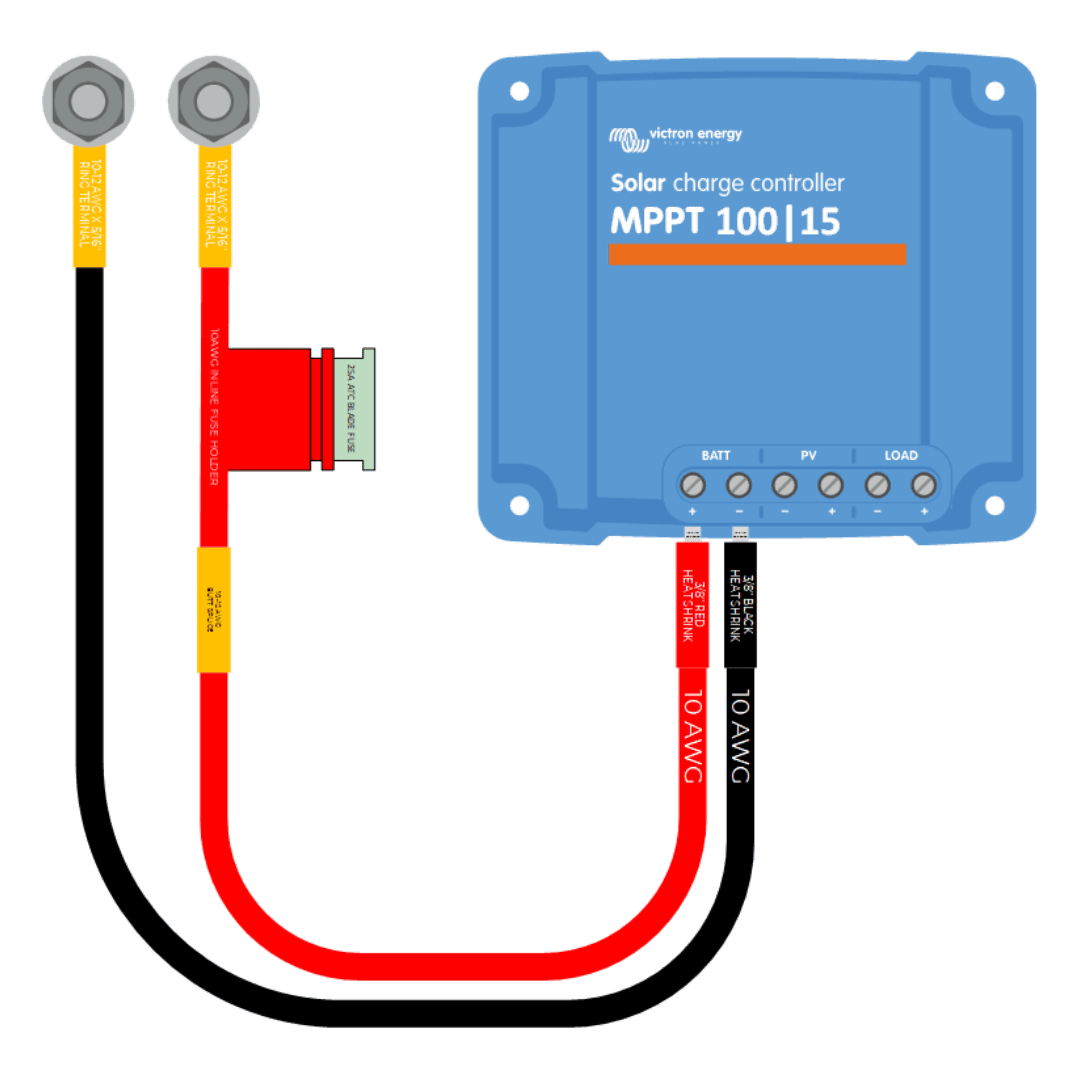

Wiring Diagram for Victron SmartSolar MPPT 100|15:

Victron SmartSolar MPPT 100|15 Wiring Kit Includes:

10 AWG Black Wire	5 ft
10 AWG Red Wire	5 ft
10 AWG Ferrule	2
10 AWG In-Line Fuse Holder	1
10 – 12 AWG Butt Splice Connector	1
10 – 12 AWG x 5/16″ Heat Shrink Ring Terminal	2
3/8″ Red Heat Shrink	1 pcs
3/8″ Black Heat Shrink	1 pcs
25 Amp ATC Blade Fuse	1
Mounting Hardware for Victron SmartSolar MPPT 100|15	1 pk

---

---

Product Information:

• 10 AWG Wire (Red and Black)
  • Size: 10 gauge (AWG)
  • Type: Tin plated copper wire
  • Insulation Type: PVC
  • Temperature Rating: -40?C to +105?C (dry)
  • Max Voltage: 600V
• 10 – 12 AWG Heat Shrink Ring Terminals
  • Size: 10 – 12 gauge (AWG)
  • Type: Copper
  • Max Voltage: 125V
  • Temperature Rating: 130?C
• 10 AWG In-Line Fuse Holder
  • Fuse Type: ATO/ATC
  • Voltage Rating: 32V
  • Termination: 10 AWG
  • Temperature Rating: -40?C to +105?C
• 10 AWG Ferrules
  • Size: 10 gauge (AWG)
  • Type: Tin Plated Copper
  • Max Voltage: 600V
  • Temperature Rating: 105?C
• 25 Amp Blade Fuse
  • Series: ATC
  • Current Rating: 25A
  • Voltage Rating: 32V
  • Blade Width: 5.25mm
